Precision in Motion: The Art and Science of CNC Gear Machining

Gears are the unsung heroes of the mechanical world. From the intricate mechanism of a wristwatch to the powerful drivetrain of a wind turbine, these precisely toothed components are fundamental to transmitting motion and force. The demand for gears that are stronger, quieter, more efficient, and produced faster has driven manufacturing away from traditional methods and towards a revolutionary process: CNC (Computer Numerical Control) Gear Machining.

This technology represents the pinnacle of precision manufacturing, combining advanced software, sophisticated machinery, and engineering expertise to create gears of exceptional quality.

What is CNC Gear Machining?

CNC gear machining is a subtractive manufacturing process where pre-programmed computer software dictates the movement of factory tools and machinery. It involves the automated control of machining tools such as mills, lathes, and especially dedicated gear cutting machines like hobbers and shapers, to produce gear teeth with micron-level accuracy.

The process begins with a solid blank of material, typically steel, aluminum, brass, or plastics. This blank is mounted onto a CNC machine, which then uses cutting tools to progressively remove material, sculpting the precise geometry of the gear teeth according to a digital blueprint (CAD model).

Key CNC Gear Manufacturing Processes

Several specialized CNC processes are employed to create different types of gears:

1. CNC Gear Hobbing: This is the most common method for producing spur and helical gears. A cutting tool called a hob—a cylindrical tool with helical cutting teeth—rotates in sync with the gear blank. The hob's teeth gradually cut into the blank, generating the gear tooth form. CNC controls the feed rate, rotation speeds, and synchronization with incredible precision.

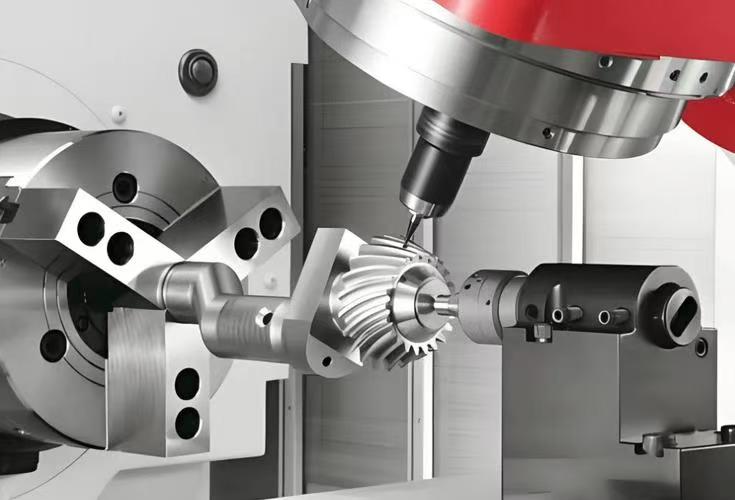

2. CNC Gear Milling: Using a rotating multi-tooth cutter, this process can create a wide variety of gears, including bevel gears and custom profiles. While not always as fast as hobbing for high volumes, CNC milling offers tremendous flexibility for prototypes, large gears, or gears with unique tooth forms.

3. CNC Gear Shaping: This process uses a reciprocating cutting tool that resembles a gear. The cutter and the blank rotate together in a meshing motion, "shaving" the tooth shape onto the blank. It is excellent for creating internal gears and gears very close to shoulders or other obstructions.

4. CNC Gear Grinding: For the highest levels of precision and surface finish, gear grinding is used as a finishing process. It uses a grinding wheel to remove minute amounts of material from a pre-cut gear. This process hardens gears, eliminates heat treatment distortions, and achieves the quietest and most efficient running surfaces. It is essential for aerospace, automotive, and other high-performance applications.

5. CNC Gear Shaving and Honing: These are finishing processes used to improve the surface finish and correct minor deviations in tooth geometry after heat treatment, further reducing noise and increasing longevity.

The Unmatched Advantages of CNC Gear Machining

The shift to CNC has transformed gear manufacturing, offering benefits that traditional methods cannot match:

· Exceptional Precision and Accuracy: CNC machines eliminate human error, producing gears with tolerances within micrometers. This ensures perfect meshing, optimal load distribution, and smooth operation.

· Superior Consistency and Repeatability: Once a program is verified, a CNC machine can produce thousands of identical gears, batch after batch, guaranteeing consistent quality throughout a production run.

· Complex Geometry Made Simple: CNC software can easily handle complex tooth profiles, including asymmetric teeth, modified involutes, and custom designs that would be extremely difficult or impossible to create manually.

· Increased Efficiency and Productivity: CNC automation allows for lights-out manufacturing (unattended operation), significantly reducing production time and labor costs per unit.

· Flexibility and Rapid Prototyping: Changing a gear design is as simple as modifying the CAD file and generating a new toolpath. This allows for quick iterations and cost-effective prototyping without the need for custom tooling.

Applications: Where Precision Gears Are Critical

CNC-machined gears are found in virtually every industry that demands reliability and performance:

· Automotive: Transmissions, differentials, steering systems, and engine components.

· Aerospace and Defense: Actuation systems, helicopter transmissions, and engine starters where failure is not an option.

· Industrial Machinery: Robotics, conveyor systems, heavy-duty machine tools, and packaging equipment.

· Renewable Energy: The massive gearboxes in wind turbines that convert slow rotor speed into high-speed generator rotation.

· Medical Devices: Precision equipment like surgical robots and imaging systems (CT/MRI scanners).

The Future of CNC Gear Machining

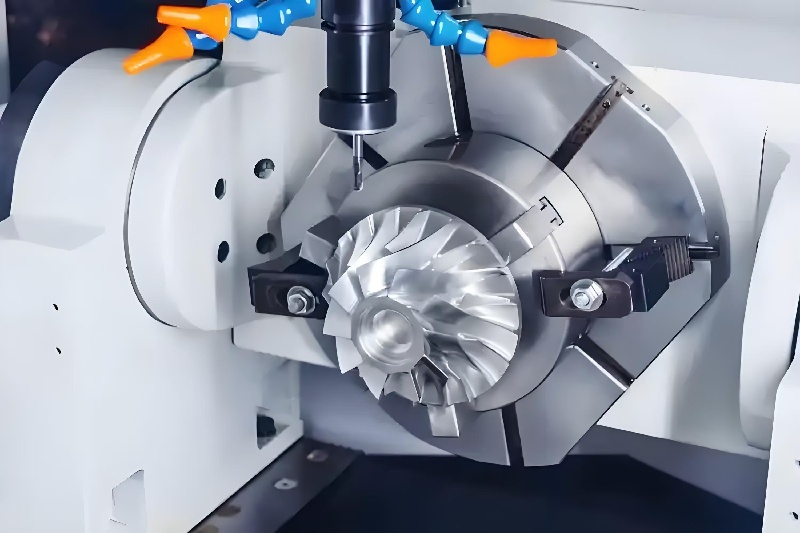

The evolution continues with trends like multi-axis machining, which allows for completing complex gears in a single setup, and integrated automation with robotics for loading and unloading. Additive manufacturing (3D printing) is also emerging for creating near-net-shape gear blanks, which are then finished with CNC machining, reducing material waste. Furthermore, the adoption of AI and IoT (Internet of Things) enables predictive maintenance, real-time monitoring, and self-optimizing machining processes for even greater efficiency.

Conclusion

CNC gear machining is more than just a manufacturing process; it is the backbone of modern precision engineering. By marrying digital design with automated, high-precision cutting, it enables the creation of the advanced, reliable, and efficient gears that power our world. As technology continues to advance, CNC will remain at the forefront, driving innovation in gear design and production for years to come.
